Módulo para 2 puertas con fuente de alimentación y caja de plástico. Compatible con controladoras de la serie A2003.
A2003L2F
Envío 3-4 díasEste producto ya no está disponible.
Módulo de ampliación
Para 2 puertas
2 lectores con caja
Fuente de alimentación

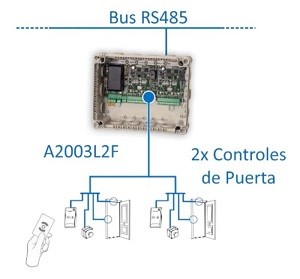

Expansion module for 2 simple doors (1 reader per door) or 1 entry / exit door (2 readers per door). Includes box and power supply. It has a multi-standard connection for the reading head as well as isolated relay outputs to be used as actuators in the electric strike. Up to 15 A2003L2Fs can be linked to a single A2003 / A2003FC access controller and they can also work in combination with A2003L modules on the same bus. LED indicators for start-up diagnostics. Reader head interface: Wiegand, RS-232 or RS-485. Maximum output current for reading head: 200 mA. Opening relay output up to 10 A (resistive loads). Auxiliary power output: 12 Vdc, up to 1000 mA. Power supply: 100-240 Vac. Maximum consumption: 30 W. Working temperature: -10 to 55ºC. Dimensions with box: 240 x 190 x 94 mm. Weight: 750 g. Compatible with Desico Access software and Vigiplus.
